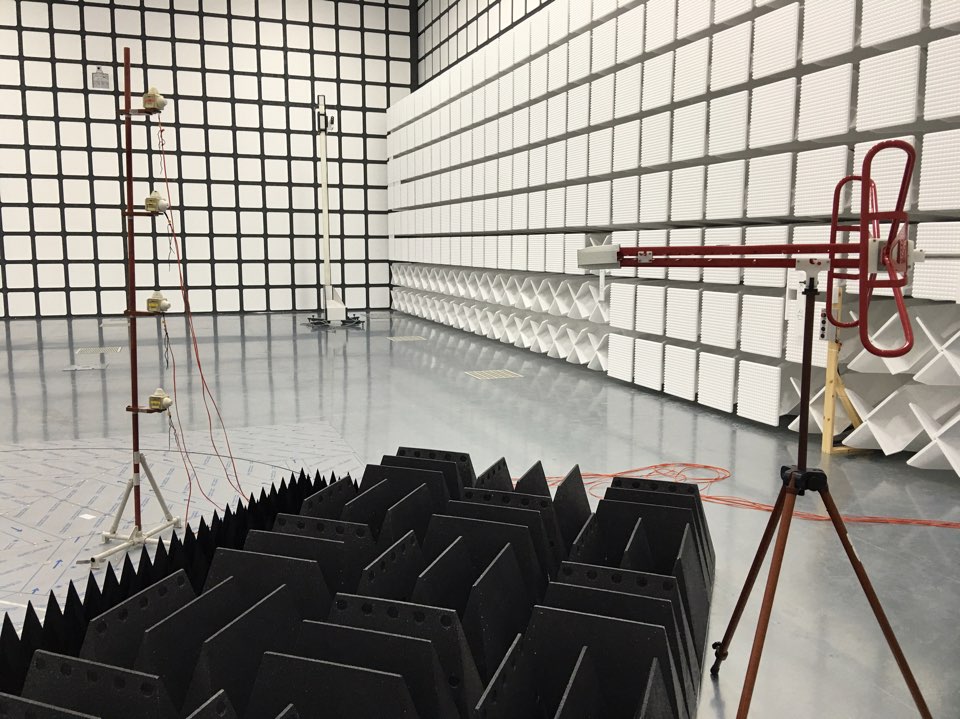

10M / 3M Anechoic Chamber



  • Dimension



s5

10m EMC Chamber
 21.0ml x 12.4W x 9.1mH
(Variable by Simulation)



s5_1

3m EMC Chamber
 9.7ml x 6.4W x 6.3mH
(Variable by Simulation)





  • Frequency Range
  • - 26MHz~40GHz





  • Normalized Site Attenuation Performance
  • - Reference Standard : CISPR 16-1-4 ANSI C63.4 EN50147-2
  • - Performance : better than ±2.0dB, 2-5dB and 3.0dB
  • - Quote zone : Diameter 3.0m, cylindrical





  • Field Uniformity Test
  • - Reference Standard L IEC61000-4-3, EN61000-4-3
  • - Uniformity Area :1.5m x 1.5m at 3m Distance (Basic Configuration)





  • Option
Electric System

CVCF
AVR
Isolation TR
Cabinet Panel
Distribution System

HAVC System

Themo Hygrostat
Air Conditioner
Duct System

Fire Fighting System

Alarm
Sampling
Detection
Extinguishing

Communication

Telephone
Modem
LAN
F/O Interphone

Monitoring System

CCTV
Network
Monitoring

Others

Steel Structure
Access Floor
Monitoring
